GS-PC01A

2*USB C 3.2 Gen2 PCle x1

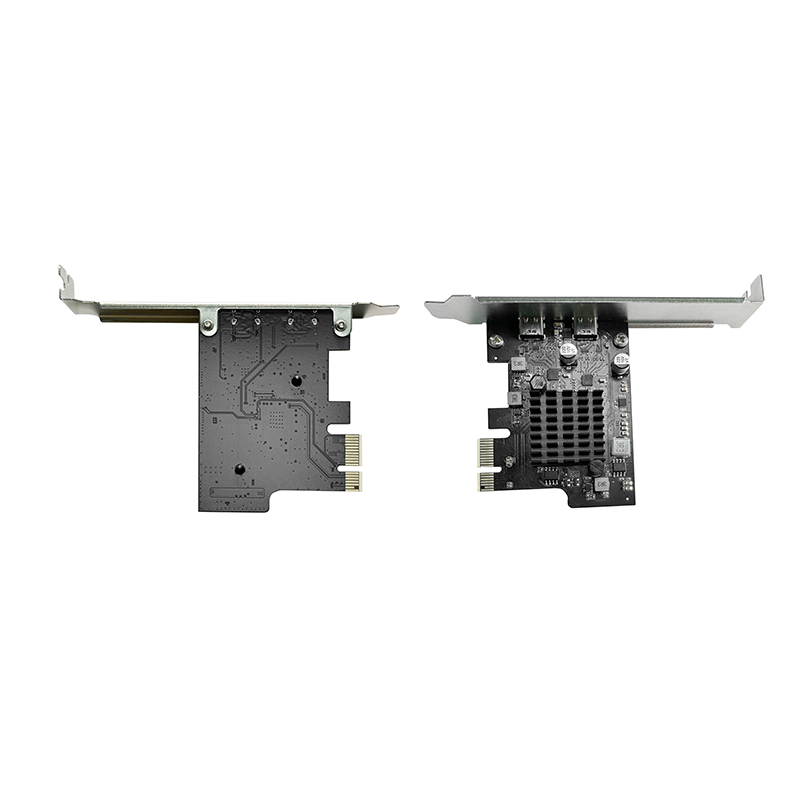

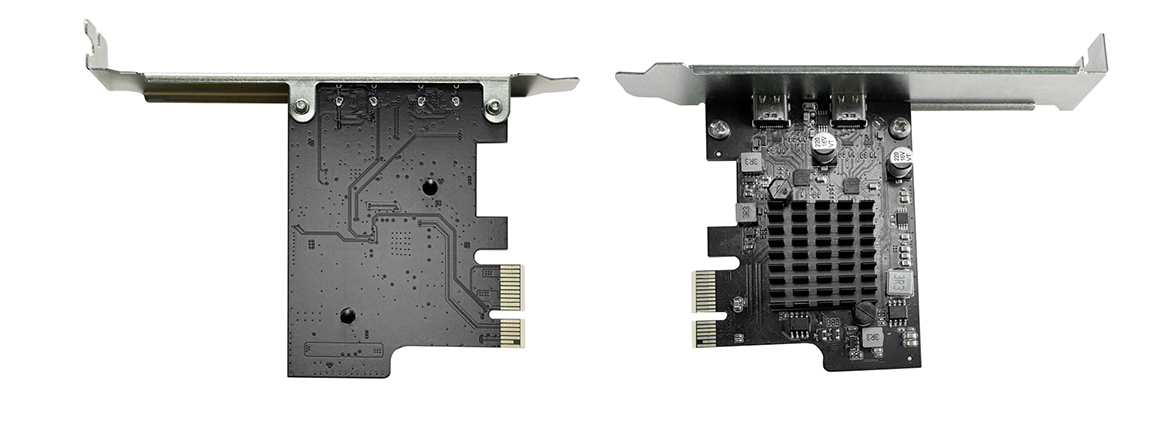

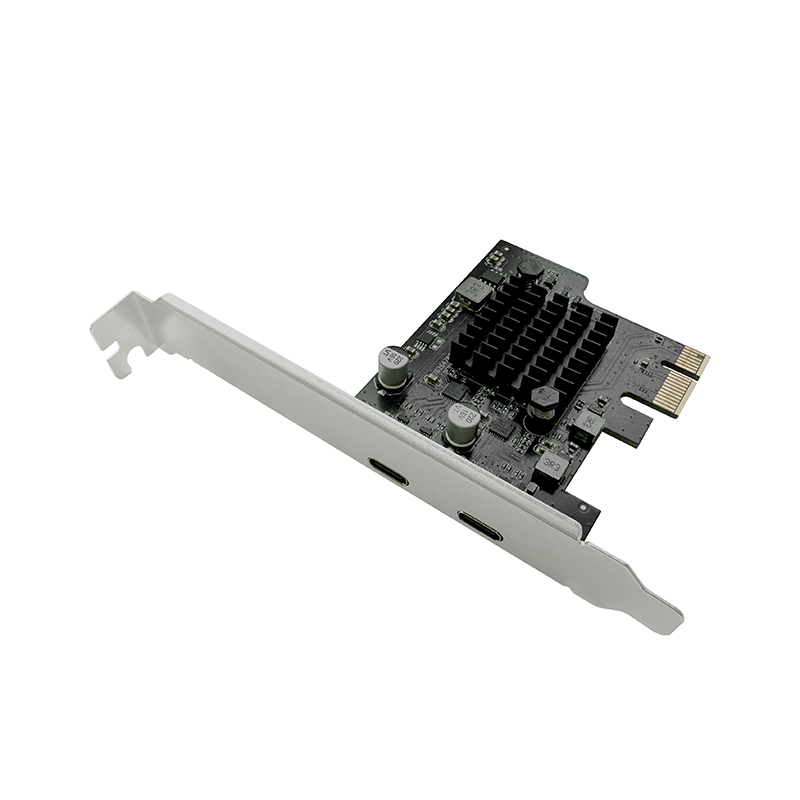

Product Picture:

Peripheral Component Interconnect Express (PCI-e), is a standard for connecting a computer's motherboard with peripherals such as graphics cards, sound cards, solid-state drives and so on. A PCIe card plugs into a corresponding slot on the motherboard, with types ranging from x1 to x16, indicating the number of data lanes available. More lanes mean higher data transfer rates.

Description：

This PCIe USB 3.2 Gen 2 card simple installs into an available PCI-Express slot in your computer and enables you to upgrade your current system by adding 2*USB-C (10Gbps) ports to copy large files with Super speed, Simply place the USB 3.2 Gen 2 PCI Express Card in the Express Card slot of your computer.

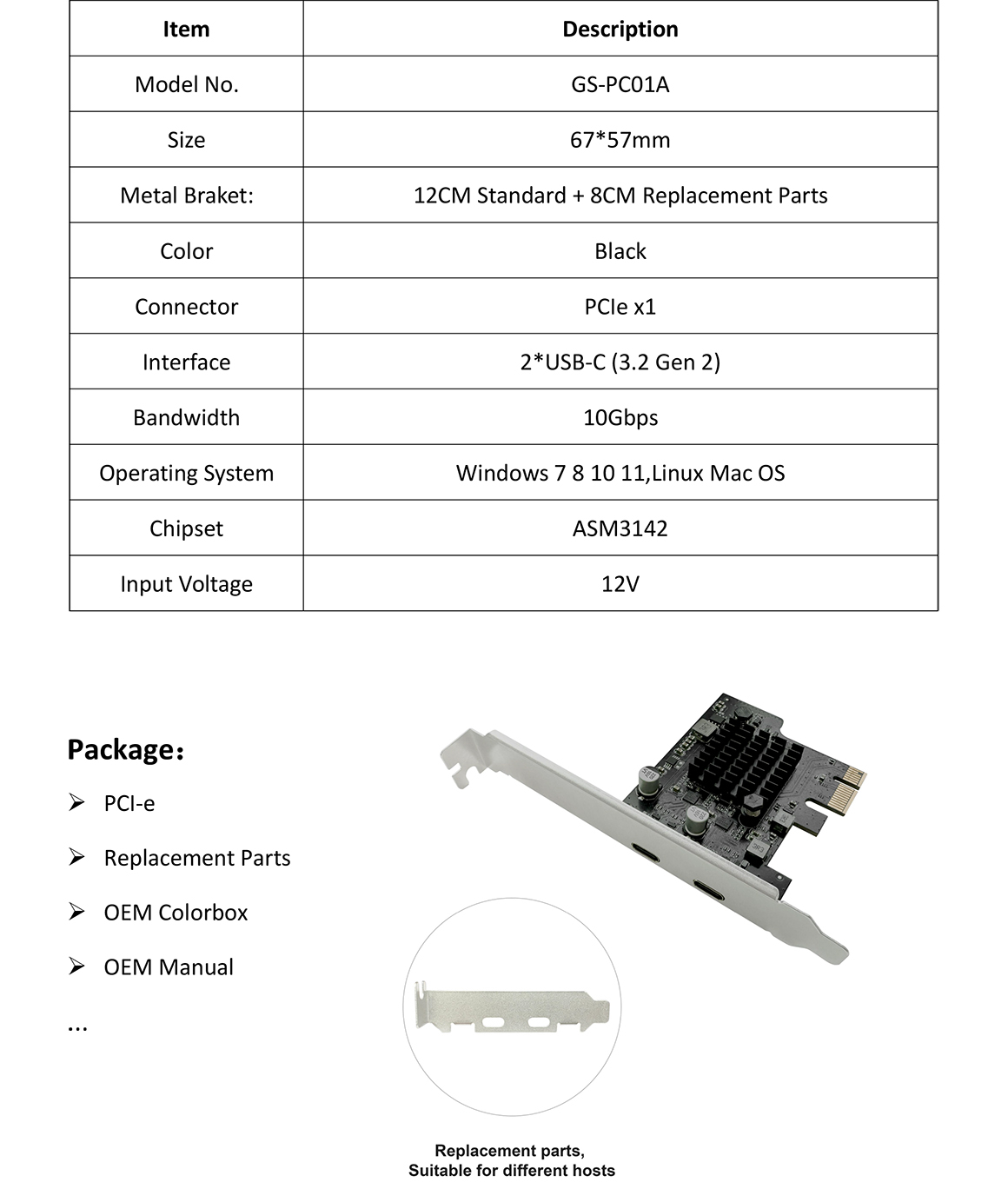

Technical Specification:

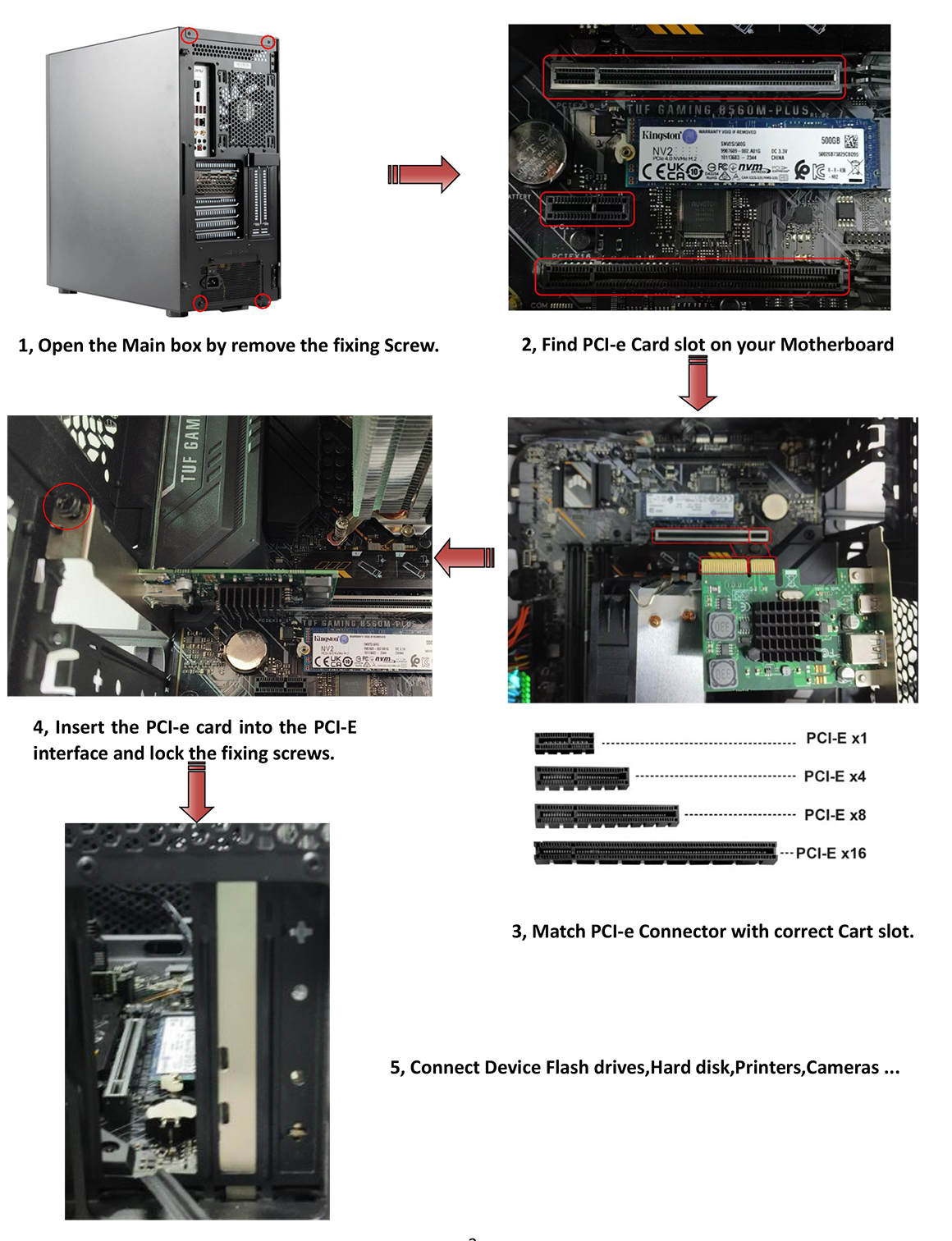

Installation:

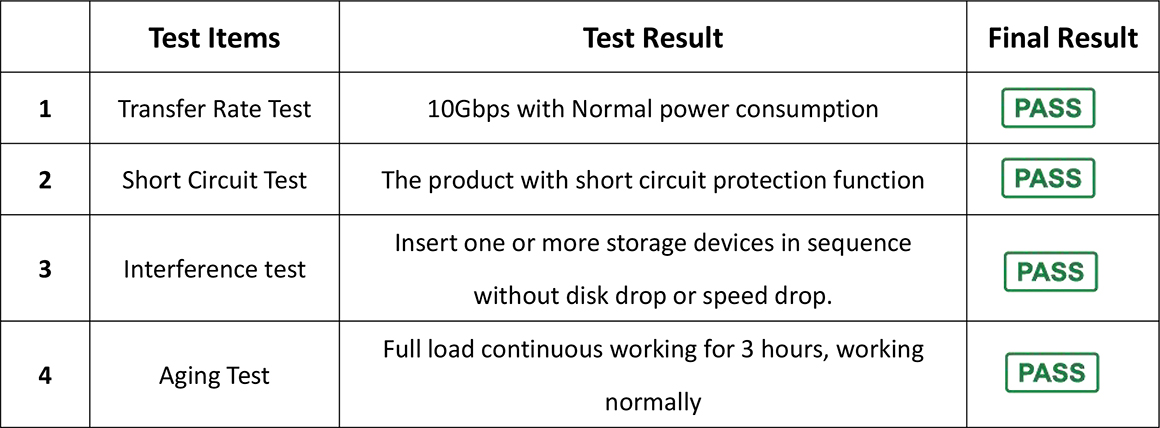

Test Reports



1, Transfer Rate Test: 10Gbps



2, Short Circuit Test

After start test Mode,Load Testing Machine shows no output voltage/current“0V", the product and computer are protected and wouldn't be damaged, the product works well after restart.
